KS Gabion Mesh Machine Production Line:
Konson brand Gabion Machine is one kind of special equipment for twisting metal wire hexagonal mesh with big wire, large mesh and wide breadth. The product has widely function, with its good corrosion resistance and oxidation resistance, it serves well as strengthening, protection and temperature keeping materials in the form of mesh container, stone cage, isolation wall, boiler cover or poultry fence in construction, chemical, breeding, garden and food processing industries.

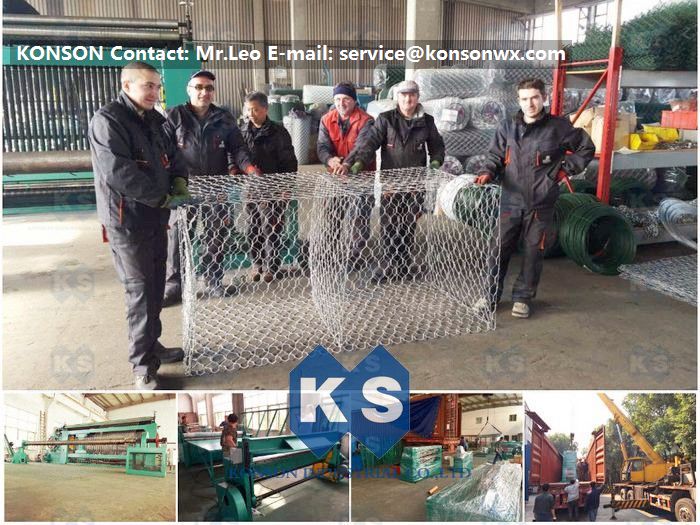

Export to Serbia:

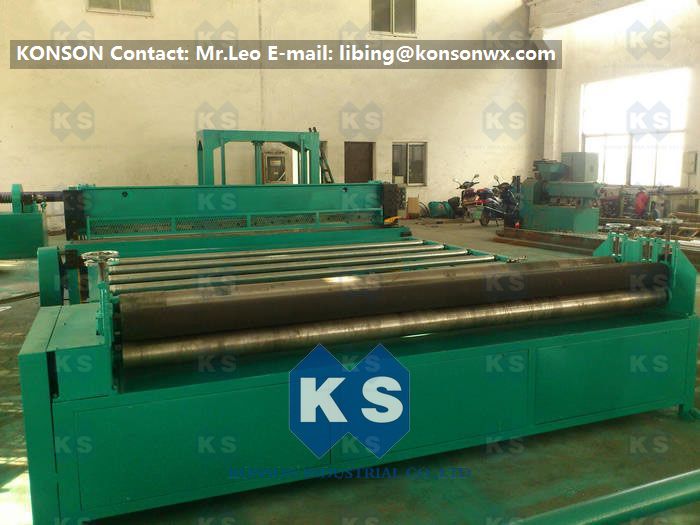

Heavy duty Hexagonal Gabion Mesh Machine Automatic Gabion Box Making
The KS series gabion mesh machines include four main standard parts: Main netting machine, Winding machine, Wire tension device and Spiral coiling machine, it is designed to make gabion of various widths and mesh sizes. The possible coatings are heavily galvanized and zinc. For high corrosion resistance, zinc and PVC, GALFAN coated is available.
Main netting machine:
1. Model: KS80100-4.0
2. Mesh size: 80x100mm
3. Twist: Double twist
4. Wire diameter: 1.6-4.0mm
5. PVC wire diameter: 3.0-5.5mm
6. Max. width: 4300mm
7. Spindle Speed:25r/min
8. Theoretic output: 3.5m/min
9. Motor power: 22.0kw
10. Weight: 15MT
11. Dimensions: 8100mm x 1500mm x 2180mm
A1. CE / TUV certificate.
A2. QC system & timely delivery.
A3. New drive mode.
A4. Automatic oil system.
A5. Overload protect clutch.
A6. High-efficiency: theoretic output = 3.5m/min.
A7. Turbine protection system (Option).
A8. Infrared ray safety (Option).
A9. Automatic stop system (Option).
A10. All of the core parts of machines are processed by our own
factory, so the quality can be ensured.
A11. KONSON offer better after-sale service. We can provide 12
months guarantee for all the equipments, we will arrange our
engineer to install the machines in your factory and teach your
workers how to produce, we will also send accessories and spare
parts without any cost.
|
|
