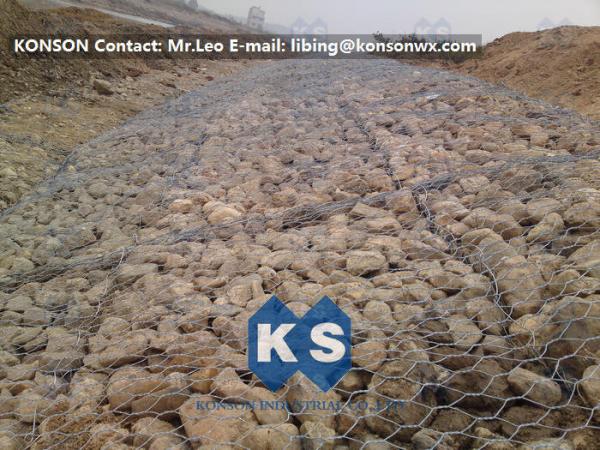

Gabion Mesh Galfan PVC Coated Wire 2.7mm Stone Box For Coastal Protection
Gabions are cages, cylinders or boxes filled with soil or sand that are used in civil engineering, road building, and military applications. For erosion control caged riprap is used.For dams or foundation construction, cylindrical metal structures are used.
Konson Gabion by CE certification and ISO9001, SGS, ASTMA97597, EN 10223 standard within SGS.We are certain that the quality is better than other suppliers and can meet you request.
Hot Dip Galvanized Wire Hexagonal Stainless Steel Welded Wire Galfan Gabion Wire Mesh
Specification:
Opening(mm) | Wire diameter (mm) | Wire Diameter (PVC Coated)/ Inner/Outside(mm) | Size(m) |
60x80 | 2.0-2.8 | 2.0/3.0-2.5/3.5 | 1x1x0.3 1x1x0.5 |
80x100 | 2.0-3.2 | 2.0/3.0-2.8/3.8 | |
80x120 | 2.0-3.2 | 2.0/3.0-2.8/3.8 | |
100x120 | 2.0-3.4 | 2.0/3.0-2.8/3.8 | |
100x150 | 2.0-3.4 | 2.0/3.0-2.8/3.8 | |
120x150 | 2.0-4.0 | 2.0/3.0-3.0/4.0 |
Details:
1.Certification:
ASTM A75-97, BS1052, EN-10223-3, YB/T4190-2009, ISO9001:2000, CE
2.Materials: Hot dip galvanized wire
Heavy zinc-coated wire(220-290g/m2 )
Pvc coated wire
Galfan wire
3.Coating: Zinc, PE, PVC, Zn-5-AL, Zn-10-Al
4.Gabion selvedge wire diameter: 2.2mm, 2.4mm, 2.7mm, 3mm, 3.4mm, 4mm
5.Gabion tie wire/lacing wire diameter: 2.2mm, 3%, 5%, 8% of weight
Gabion box used in:
1.Control and guide of water or flood , Preventing of rock breaking , Keep off dust wall
2.Rock fall protection , Water and soil protection , Port project, roadway protection
3.Bridge protection , Strengthening structure of soil
4.Protection engineering of seaside area.
When requesting a quotation, Please give me all the details:
Example:
Materials | Hot dip galvanized wire |
Size of units (length x width x height) | 2x1x1m |
Quantity | 6000 units |
Opening mesh size | 80x100mm |
Type of coating | PVC |
Mesh Diameter | 2.7-3.7mm |
Selvedge wire diameter | 3.0-4.0mm |
Tie wire/lacing wire diameter | 2.2-3.2mm |
Other | As your request. |
|
|
