Galvanized Gabion Mesh Hexagonal Wire Mesh Fence Zinc Coated Stainless Steel Wire
Galvanized hexagonal gabion is the gabion which are woven by the hexagonal mesh,
the diameter thickness depends on the mesh size, the diameter is between 2.0mm to 4.0mm if the
material is zinc coated, while the diameter will be 3.0mm to 4.5mm if the material is PVC-coated wire
, the selvage wire diameter usually is one gauge thicker than the body wire.
Purpose:

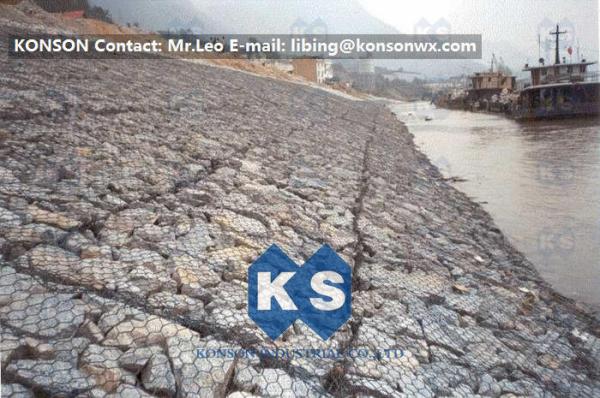

1.Controlling and leading the river and flood
2.Flood discharge and lead flow
3.rock fall defending
4.preventing the water and soil lost
5.protecting the bridge
6.reinforce fabric
7.seashore recovery project
8.seaport project
9.block wall
10.defending the road
mesh(mm) | wire(mm) | wire(PVC)/inner/outside(mm) | biggest width (mm) |
60X80 | 2.0-2.8 | 2.0/3.0-2.5/3.5 | 4300 |
80X100 | 2.0-3.2 | 2.0/3.0-2.8/3.8 | 4300 |
80X120 | 2.0-3.2 | 2.0/3.0-2.8/3.8 | 4300 |
100X120 | 2.0-3.4 | 2.0/3.0-2.8/3.8 | 4300 |
100X150 | 2.0-3.4 | 2.0/3.0-2.8/3.8 | 4300 |
120X150 | 2.0-4.0 | 2.0/3.0-3.0/4.0 | 4300 |
|
|
