    Professional Gabion Production Line Hydraulic Gabion Mesh Packing Press Machine 3mx1mx1m

    Ask Lasest Price
    Brand Name : Konson
    Certification : CE, ISO9001, SGS, ASTMA, EN, BS standard.
    Model Number : KS-DB
    Price : Discuss in mail
    Delivery Time : within 30 days in receiving prepayment
    Payment Terms : L/C, T/T
    Supply Ability : 10Sets per Month
    • Product Details
    • Company Profile

    Professional Gabion Production Line Hydraulic Gabion Mesh Packing Press Machine 3mx1mx1m

    Gabion Production Line Hydraulic Gabion Mesh Packing Press Machine For 3mx1mx1m

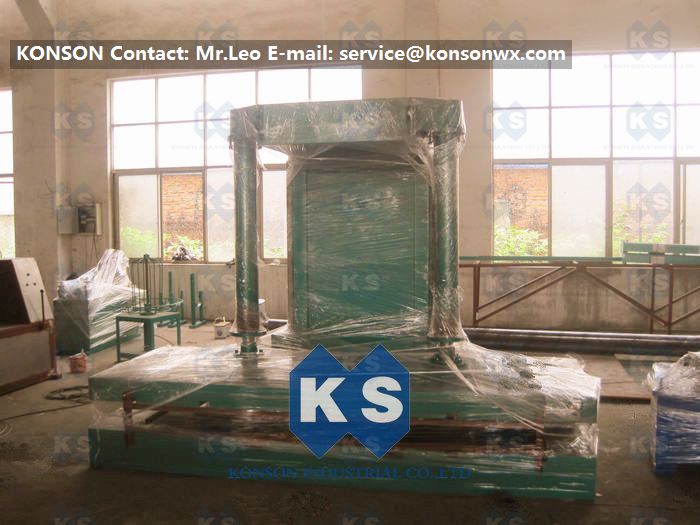

    1. Automatic Hydraulic Packing Machine:

    When the packing machine working, oil pump unit provide the pressure oil via safety valve limit the pressure and enter manual reversing valve, when manual reversing valve work on the left, pressure oil enter on the oil cylinder via piston, piston rod pull pressure plate run downwards, the down oil of the oil cylinder stream back to tank via reversing valve.



    Sell to Jiangyin Jinlida Light Industry Machinery Co.,Ltd.


    Working Width:3000x1000mm


    Working Width:2000x1000mm

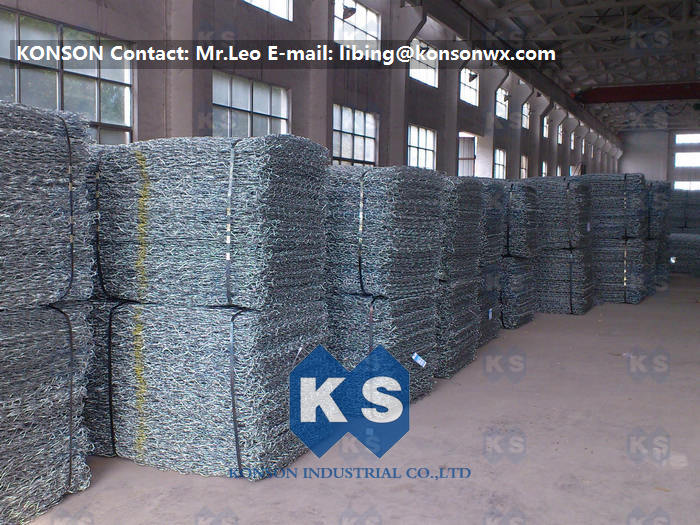

    2. Products of Packing Machine:


    3. Detail information:

    1.Machine size: 3700x2450×1250mm

    2.Nominal pressure: 80KN

    3.Working stroke: 700mm

    4.Pressure plate downwards running speed: ≥35mm/s

    5.Pressure plate upwards running speed: ≥50mm/s

    6.Packing gabion size: 2000×1000×1000mm

    7.Hydraulic oil: 32# hydraulic oil

    8.Working pressure:0.4-0.6MPA

    9.Machine weight:1500KW

    10.Power: 5.5Kw

    Quality Professional Gabion Production Line Hydraulic Gabion Mesh Packing Press Machine 3mx1mx1m for sale
