| Brand Name : | Konson |
| Model Number : | KS-DH1200 |
| Certification : | CE, ISO9001, SGS, ASTMA, EN,BS standard. |
| Price : | Discuss in mail |
| Delivery Time : | within 30 days in receiving prepayment |
| Payment Terms : | L/C, T/T |
| Supply Ability : | 10Sets per Month |
Gabion Production Line 1200mm Length 4mm Wire Spiral Coiling Machine Winding Wire Mesh
1 automatic, higher efficiency
2 length:1200mm
3 shafts:4pcs

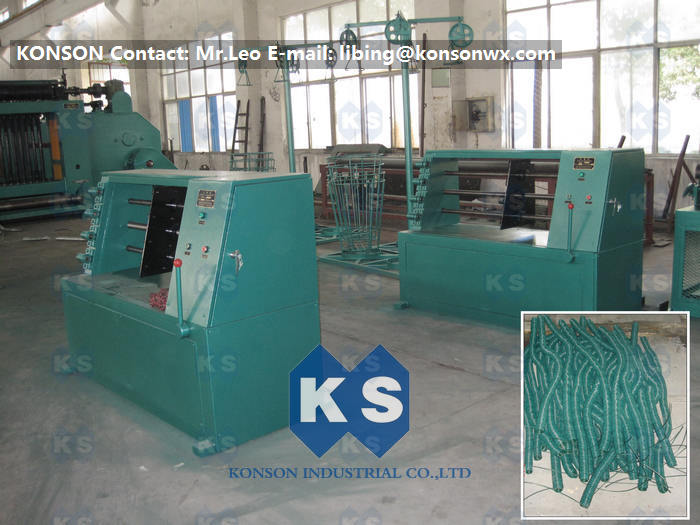

spiral coiling machine model KS-DH1200 is the four twisting shafts type machine.
It is the matching equipment to the hexagonal wire netting machine.
The difference diameter shafts can be used to produce difference size of spiral wires, according to the need of the hexagonal wire net.
Max. twistable wire diameter: 3.0mm
Max. length of the spiral wire: 1200mm
Number of the shafts: 4pcs
Diameter of the shaft: 28mm
Power input: 1.5kw
Dimension: 1630×1160×2010mm
Weight: 1500kgs
|
|
