| Brand Name : | Konson |
| Model Number : | KS-GP |
| Certification : | ISO9001,SGS,CE,ASTMA97597,EN 10223 standard. |
| Price : | Discuss in mail |
| Delivery Time : | 10 days for 1x40 feet FCL |
| Payment Terms : | L/C,T/T |
| Supply Ability : | 12000 sqm per day |

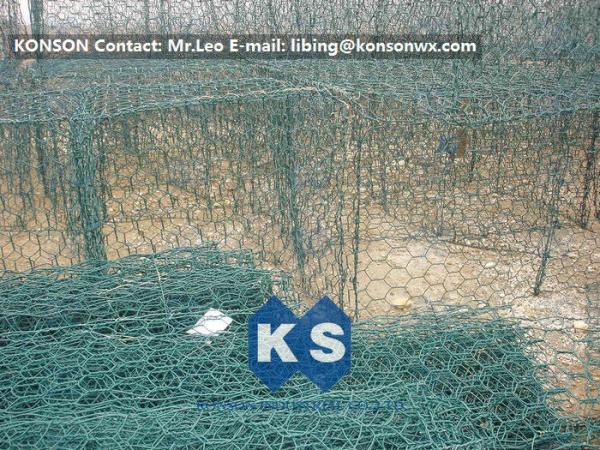

Woven Wire Mesh Galvanised Wire Mesh PVC Gabions Coated Stone Basket
pvc coated gabion is manufactured by PVC coating Line.Firstly,
coating polyvinyl chloride on mesh wire and straighten the
wire.Secondly, pvc coated gabion is made by gabion machine.
Wire diameter varies with the hexagonal nettings.For hexagonal wire
netting with no pvc coating, the wire diameter ranges from 2.0mm to
4.0mm.For those PVC coated hexagonal wire netting, the outside
diameter ranges from 3.0mm to 4.0mm. The wire of the outside frame
edge is one wire gauge thicker than the wire used for hexagonal
wire netting.
Specification:
Opening(mm) | Wire diameter (mm) | Wire Diameter (PVC Coated)/ Inner/Outside(mm) | Size(m) |
60x80 | 2.0-2.8 | 2.0/3.0-2.5/3.5 | 1x1x0.3 1x1x0.5 |
80x100 | 2.0-3.2 | 2.0/3.0-2.8/3.8 | |
80x120 | 2.0-3.2 | 2.0/3.0-2.8/3.8 | |
100x120 | 2.0-3.4 | 2.0/3.0-2.8/3.8 | |
100x150 | 2.0-3.4 | 2.0/3.0-2.8/3.8 | |
120x150 | 2.0-4.0 | 2.0/3.0-3.0/4.0 |

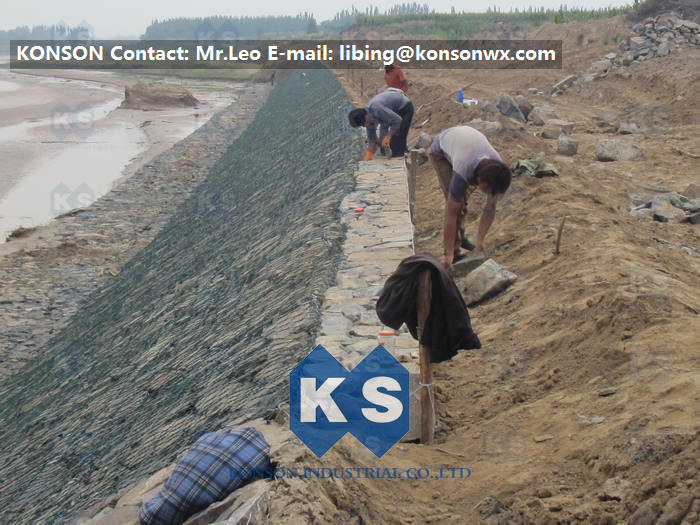

The project is in Jiangsu, China.
|
|
