    Galvanized Wire Netting Gabion Mesh Machine For Chemical Engineering Industry

    Ask Lasest Price
    Brand Name : Konson
    Model Number : KS80100-3.2
    Certification : CE, ISO9001, SGS test, Chinese Patent
    Price : Discuss in mail
    Payment Terms : L/C, T/T
    Supply Ability : 10 Sets per Month
    Delivery Time : within 30 days in receiving prepayment
    • Product Details
    • Company Profile

    Galvanized Wire Netting Gabion Mesh Machine For Chemical Engineering Industry


    Galvanized Wire Netting Gabion Mesh Machine For Chemical Engineering Industry


    Descrition:

    Adopted with central automatic lubrication system, so as to make feeding guideway to have the good performance for little resistance, little friction, good lubrication and long life etc.


    Applications:
    Gabion making machine is the professional machine to produce hexagonal mesh,the mesh can be used to produce coop,and is widely used as protect and sustain bank,hillside,road and bridge,reservoir and other construction project.And it is one of the best material against flood.


    Gabion Mesh Machine Benifits

    1. Gabion mesh machine is also called heavy duty hexagonal wire mesh machine, gabion machine , stone cage making machine.

    2. This gabion machine weave hexagonal mesh vertically.


    The KS series automatic gabion machine includes four main standard parts: Main netting machine, winding machine, wire tension device and spiral coiling machine, it can produce gabions of various widths and mesh sizes.

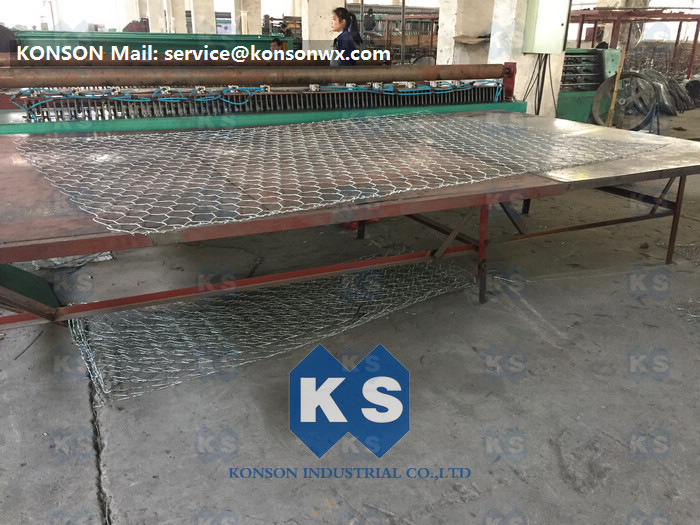

    Automatic Gabion Mesh Machine:

    Konson brand gabion machine refers to the machine for making of hexagonal wire netting, it is also known as heavy type hexagonal wire netting machine. Our machine is specially used to produce the large size and heavy duty hexagonal (galvanized, galfan & PVC wire) wire meshes for the fence and the stone gabions usage. It has several models for different sizes of meshes and the maximum netting width is up to 4.3 meters. We can also supply the complete production line for your whole netting workshop.


    Specification:

    MODEL

    MESH SIZE

    MAX.WIRE DIA.

    MAX WIDTH

    PRODUCING RATE

    KS6080-2.4

    60X80

    mm

    3.0mm

    2400mm

    >3.3 m/min

    KS6080-3.2

    3.5mm

    3200mm

    KS6080-4.0

    3.5mm

    4300mm

    KS80100-2.4

    80X100

    mm

    3.5mm

    2400mm

    >3.5 m/min

    KS80100-3.2

    3.5mm

    3200mm

    KS80100-4.0

    4.0mm

    4300mm

    KS100120-2.4

    100X120

    mm

    3.5mm

    2400mm

    >3.5 m/min

    KS100120-3.2

    3.5mm

    3200mm

    KS100120-4.0

    4.0mm

    4300mm

    KS120150-2.4

    120X150

    mm

    4.0mm

    2400mm

    >3.8 m/min

    KS120150-3.2

    4.0mm

    3200mm

    KS120150-4.0

    4.0mm

    4300mm


    Quality Galvanized Wire Netting Gabion Mesh Machine For Chemical Engineering Industry for sale
